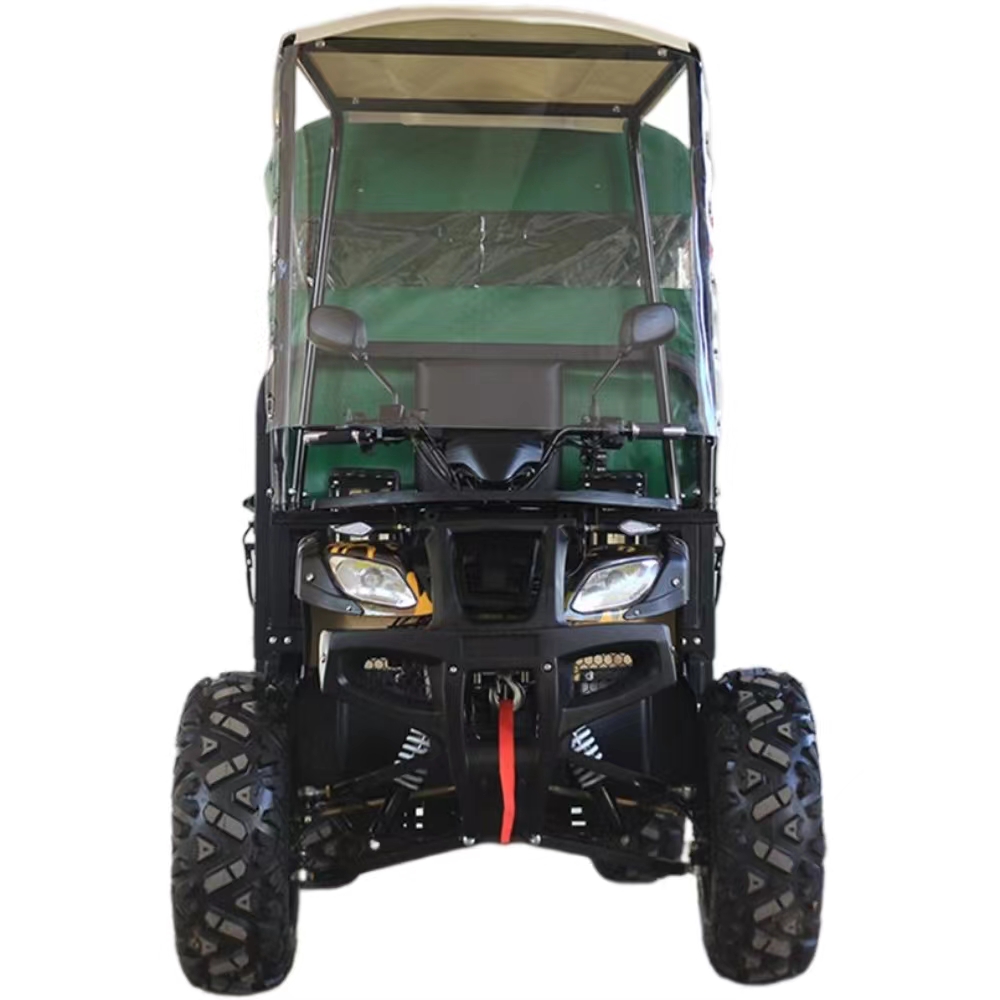

Name:electric farm atv

Item No.:CATV-059E

Details:

Battery Specification:72V52Ah lead acid

Motor Specification:3000W Differential Speed Motor

Maximum Torque:611.98N.m

Maximum Output Power:4863.3W

Differential Ratio:10:1

Net Weight:326KG

Gross Weight:380KG

Maximum Load:500KG

Maximum Speed:50km/h without load

Maximum Speed:40km/h in 500KG load

Front wheel:25X8-12, Alloy rim

Rear Wheel:25X10-12, Alloy rim

Front Brake:Double drum brakes by hand

Rear Brake:Double disc brakes by foot

Product size（mm）:2500*1240*1420mm

Packing size（mm）:2400*1020*850mm

Seat Height:830mm

Minimum Ground Clearance:200mm

Wheelbase:1740mm

Front Track:990mm

Rear Track:990mm

Maximum Climbing:30°without load

Maximum Climbing:20°with load

Trailer Size:1100*1200*350mm or 1100*1500*350mm

Winch::option: 2000LBS

Winch Battery:option: 12V9Ah Lead Acid

Cargo ATV Package:Inner Frame and Outer 5 Layers Carton

Container Load:20GP:8PCS, 40HQ:30PCS
